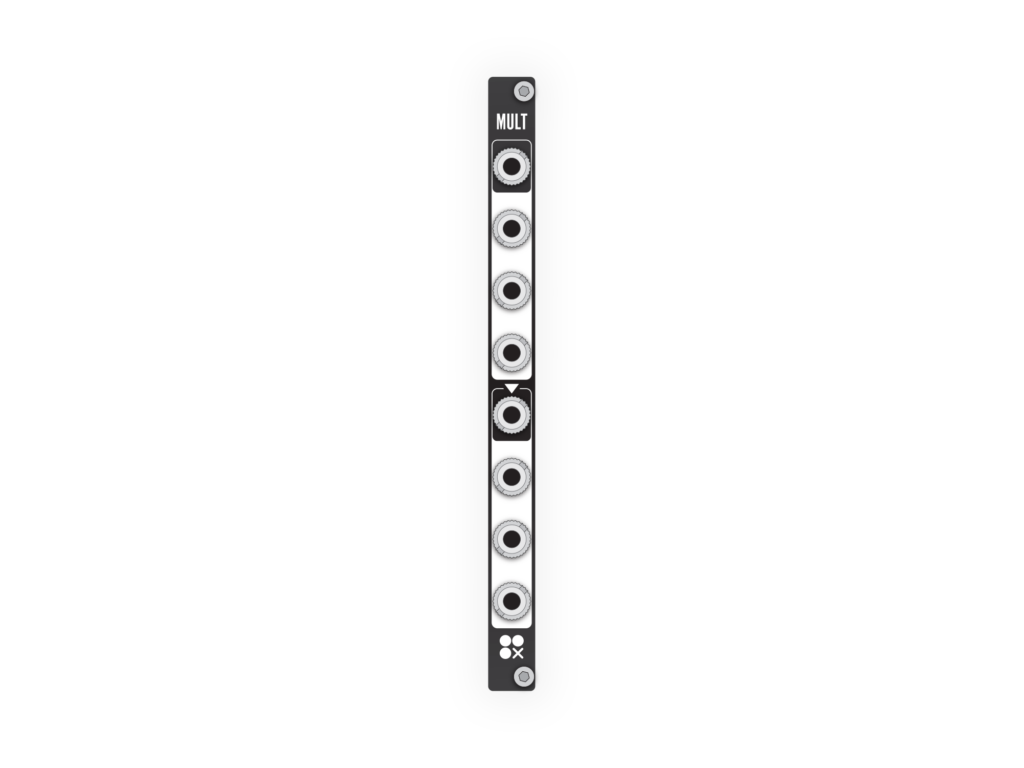

MULT

MULT is an active module used to split or distribute a signal to multiple destinations without the voltage drop or signal degradation that can occur with passive multiples.

TECHNICAL SPECIFICATIONS

FEATURES

Signal Integrity: Buffered multiple uses op-amps to maintain the integrity of the signal when it is split. This ensures that the voltage levels remain consistent and stable across all outputs, which is crucial for pitch CV signals where even small voltage drops can result in detuning.
Isolation: Buffered multiple provides electrical isolation between the outputs, which can help prevent interaction between different modules that could cause unwanted modulation or interference.
Use Cases: It is especially useful when splitting sensitive signals like pitch CV, where accuracy is paramount. For example, if you want to send the same pitch CV to multiple oscillators and have them stay perfectly in tune with each other, a buffered multiple is the best choice.
Design: It has two inputs and three outputs for each input. If only the first input is used and the second input is left unpatched, the first input is automatically routed to both sections, effectively multiplying the signal to all six outputs
